• Rear axle, 3.42 ratio
• Differential, heavy-duty locking rear
• All-wheel drive
• Transfer case, AWD, electronic automatic system (Not available on 2WD models.)
• Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• Recovery hooks, 2 front, frame-mounted
• Alternator, 160 amps
• GVWR, 7400 lbs. (3357 kg) (Not available on 2WD models.)
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Tools, mechanical jack and wheel wrench, stored in rear quarter trim

• Wheels, 4 - 20" x 8.5" (50.8 cm x 21.6 cm) chrome aluminum
• Tires, P275/55R20 all-season, blackwall
• Wheel, 17" (43.2 cm) full-size steel spare
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Tire, spare P265/70R17 all-season, blackwall
• Luggage rack side rails, roof-mounted, Black
• Luggage rack center rails
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Moldings, body-color bodyside with bright inserts
• Grille, chrome surround
• Assist steps, Black with chrome insert, mounted between the front and rear wheels
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front round halogen
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, bodycolor with integrated turn signal indicators, ground illumination and curb-tilt (Includes memory function with (AN3) front bucket seats.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver and front passenger-side glass)
• Wipers, front intermittent wet-arm with flat blade and pulse washers
• Liftgate with liftglass, rear door system with rear-window wiper/washer
• Liftgate, rear power-operated controlled from front overhead console, remote key fob or button inside liftgate
• Wiper, rear intermittent with washer

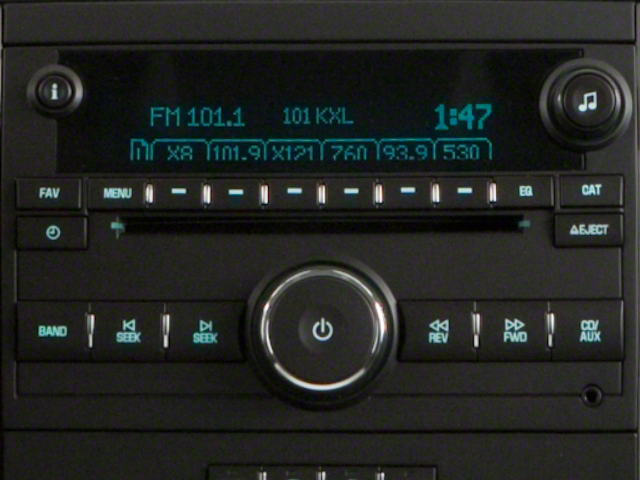

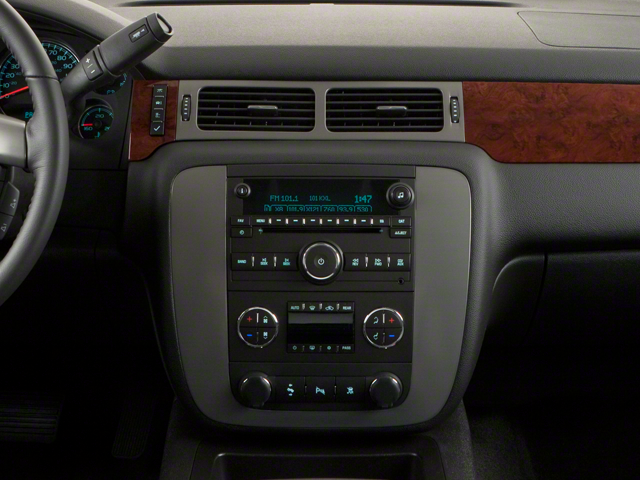

• Audio system with Navigation AM/FM stereo with MP3 compatible CD player and navigation with voice prompts, seek-and-scan, digital clock, auto-tone control, USB port, Radio Data System (RDS), speed-compensated volume and TheftLock (Not available with (U42) rear seat entertainment system or with (PCJ) Sun, Entertainment and Destinations Package.)
• Audio system feature, USB port
• Audio system feature, Bose Centerpoint Surround Sound 10-speaker system
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Acoustical Insulation Package, premium
• XM Radio is standard on nearly all 2011 GM models and includes 3 months of trial service. Get over 170 channels, including: commercial-free music, sports, news, talk, entertainment, comedy, family and kids' channels, and much more. With XM's incredible range of programming, everything worth listening to is on XM (Requires a subscription sold separately by XM after the first 90 days. Available only in the 48 contiguous United States and District of Columbia. Visit gm.xmradio.com for details.)
• Antenna, integral in rear quarter glass
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system

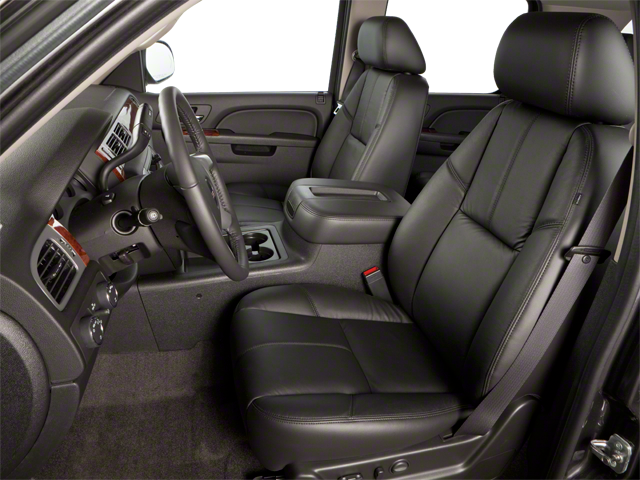

• Seats, front bucket with leather-appointed seating, 10-way power driver and front passenger seat adjusters including power lumbar control, power recline, heated seat cushion and seatbacks, 2-position driver memory, adjustable head restraints, storage pockets and floor console.
• Seats, second row captain's chairs with leather-appointed seating 2 reclining bucket seats
• Seat adjuster, driver power
• Seat adjuster, front passenger power
• Seats, heated second row
• Seats, heated and cooled driver and front passenger seat cushions and seat backs with perforated leather-appointed seating
• Seat release, power seat release only, second row bench or bucket

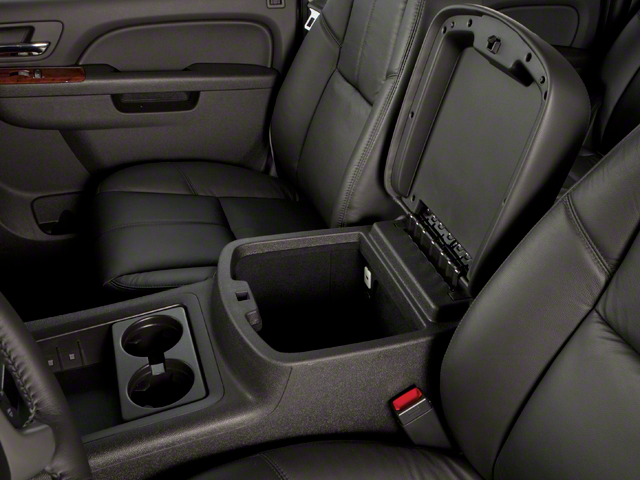

• Console, floor with storage area, cup holders and integrated second row audio and HVAC controls
• Cup holders, in front seating area
• Cup holders, driver and passenger-side in third row side trim
• Cup holders, in rear of floor console
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row, removable

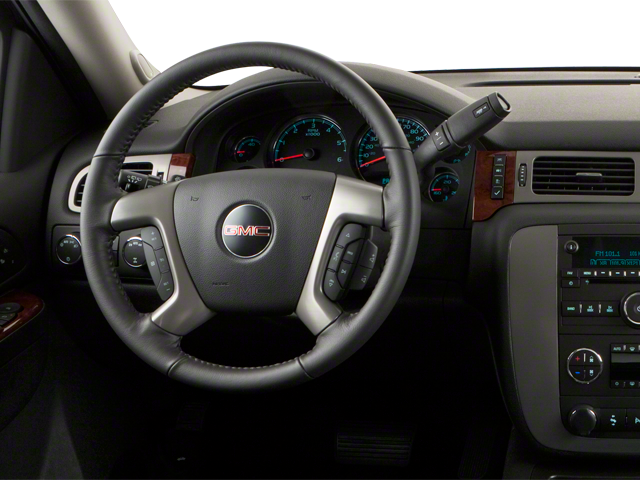

• Steering wheel, Deluxe, leather-wrapped
• Steering wheel, heated
• Steering wheel controls, mounted audio and cruise controls includes Driver Information Center controls located on instrument panel
• Tow/haul mode selector, button located at end of shift lever
• Driver Information Center, full-functionality included with temperature and compass
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

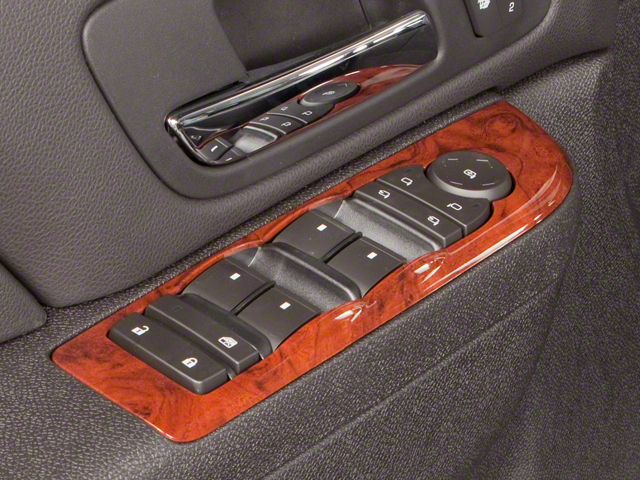

• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Cruise control, electronic with set and resume speed
• Universal Home Remote includes garage door opener, programmable
• Pedals, power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Remote vehicle starter system includes Remote Keyless Entry
• XM NavTraffic is available in over 80 markets and works with your vehicle's navigation system to give you real-time traffic data right when you need it most - while you're driving. You'll avoid traffic tie-ups, save time and gas by getting alternate routes, and, in some cases, receive traffic speed and drive time information. Plus, you can use XM NavTraffic at the same time you're enjoying XM Radio. You'll find that once you start using XM NavTraffic, you won't want to drive without it (Includes 3 trial months. Included and only available with (UUL) Audio system with Navigation or (UUK) Audio system with Rear Seat Entertainment and Navigation. Requires a subscription sold separately by XM after trial period. Available only in select markets. For more information, see xmradio.com/navtraffic.)
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right front passenger
• Air conditioning, rear auxiliary
• Heater, rear auxiliary with rear passenger heating ducts
• Defogger, rear-window electric
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlets, 5 auxiliary, 12-volt includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console
• Door trim, side reflectors on rear doors
• Armrests, driver and passenger doors, padded
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Mirror, inside rearview auto-dimming
• Console, overhead mini with map lights
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod, includes corner storage pockets on back of visors, Shale-colored
• Assist handles, front passenger and second row outboard
• Coat hooks, driver- and passenger-side rear seat and cargo area
• Storage bin, behind driver-side rear quarter panel
• Cargo mat

• StabiliTrak, stability control system with traction control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor includes third row seating positions with (AS3) 3-passenger third row 50/50 split-bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock, Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Rearview camera system
• Rear Parking Assist, Ultrasonic with audible warning
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitoring System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

• Seats, third row 50/50 split-bench 3-passenger, removable, all-belts-to-seat

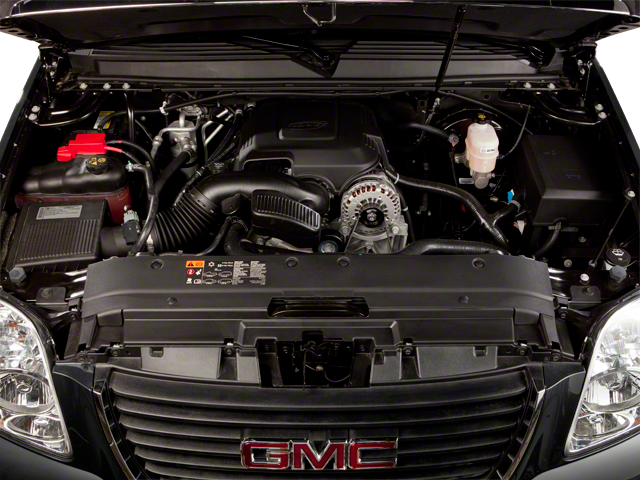

ENGINE, VORTEC 6.2L VARIABLE VALVE TIMING V8 SFI , ACTIVE FUEL MANAGEMENT

• with E85 FlexFuel capability (403 hp [300.5 kW] @ 5700 rpm
• 417 lb-ft of torque [562.9 N-m] @ 4300 rpm) (STD)

• L94
• MYC
• PCJ
• UFT
• UUK
• VSJ
• W04

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 14
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): 3147
• Curb Weight - Rear (lbs): 2877
• Gross Vehicle Weight Rating Cap (lbs): 7400
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1170
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Coil springs
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: ZRS
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2125
• Rear Tire Capacity (lbs): 2125
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 222.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 76.8
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 32.6
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 8.9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 101.8
• Cargo Area Length @ Floor to Seat 2 (in): 69.6
• Cargo Area Length @ Floor to Seat 3 (in): 35.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 41.4
• Cargo Volume to Seat 1 (ft³): 137.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 40.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 60.3
• Second Head Room (in): 38.5
• Second Leg Room (in): 39.5
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 61.8
• Third Head Room (in): 38.1
• Third Leg Room (in): 34.9
• Third Shoulder Room (in): 64.7
• Third Hip Room (in): 49.4
• Summary
• Vehicle Name: GMC Yukon XL
• Body Style: 4 Door
• Body Code: E52
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 13.3
